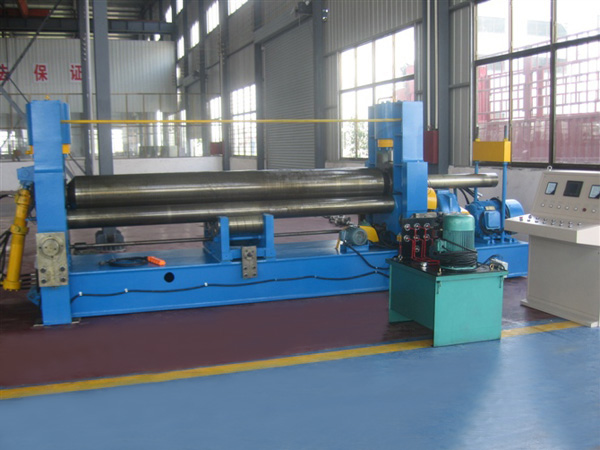

W11S-20*3200上輥萬能式卷板機
中型上輥萬能式卷板機技術參數：
|
規格型號
|
上輥加壓力
(Tons) |
最大板厚
|
板 幅
(mm) |
上輥直徑
(mm) |
下輥直徑
(mm) |
中心距
(mm) |
電動機(kw)
|
|||
|
端曲
(mm) |
中央
(mm) |
驅動用
|
油壓用
|
移動用
|
||||||
|
W11S-15×2000
|
75
|
12
|
15
|
2000
|
255
|
150
|
245
|
7.5
|
4
|
1.1
|
|
W11S-14×2500
|
75
|
10
|
14
|
2500
|
270
|
150
|
245
|
7.5
|
4
|
1.1
|
|
W11S-13×3000
|
75
|
9
|
13
|
3000
|
290
|
150
|
245
|
7.5
|
4
|
1.1
|
|
W11S-17×2500
|
100
|
13
|
17
|
2500
|
300
|
165
|
270
|
15
|
5.5
|
1.5
|
|
W11S-15×3000
|
100
|
11
|
15
|
3000
|
325
|
165
|
270
|
15
|
5.5
|
1.5
|
|
W11S-20×2500
|
130
|
16
|
20
|
2500
|
330
|
180
|
300
|
15
|
5.5
|
2.2
|
|
W11S-18×3000
|
130
|
14
|
18
|
3000
|
350
|
180
|
300
|
15
|
5.5
|
2.2
|
|
W11S-22×2500
|
160
|
18
|
22
|
2500
|
360
|
200
|
330
|
18.5
|
7.5
|
2.2
|
|
W11S-20×3000
|
160
|
16
|
20
|
3000
|
375
|
200
|
330
|
18.5
|
7.5
|
2.2
|
|
W11S-18×3500
|
160
|
14
|
18
|
3500
|
390
|
200
|
330
|
18.5
|
7.5
|
2.2
|
|
W11S-24×2500
|
190
|
21
|
24
|
2500
|
380
|
220
|
360
|
22
|
7.5
|
4
|
|
W11S-22×3000
|
190
|
19
|
22
|
3000
|
400
|
220
|
360
|
22
|
7.5
|
4
|
|
W11S-19×3500
|
190
|
16
|
19
|
3500
|
410
|
220
|
360
|
22
|
7.5
|
4
|
|
W11S-29×2500
|
230
|
25
|
29
|
2500
|
410
|
235
|
380
|
30
|
11
|
4
|
|
W11S-27×3000
|
230
|
21
|
25
|
3000
|
425
|
235
|
380
|
30
|
11
|
4
|
|
W11S-25×3500
|
230
|
21
|
25
|
3500
|
440
|
235
|
380
|
30
|
11
|
4
|
|
W11S-33×2500
|
270
|
28
|
33
|
2500
|
430
|
250
|
400
|
30
|
11
|
4
|
|
W11S-30×3000
|
270
|
25
|
30
|
3000
|
450
|
250
|
400
|
30
|
11
|
4
|
|
W11S-28×3500
|
270
|
23
|
28
|
3500
|
470
|
250
|
400
|
30
|
11
|
4
|
|
W11S-25×4000
|
270
|
20
|
25
|
4000
|
490
|
250
|
400
|
30
|
11
|
4
|
|
W11S-36×2500
|
320
|
30
|
36
|
2500
|
460
|
260
|
420
|
37
|
15
|
5.5
|
|
W11S-32×3000
|
320
|
28
|
32
|
3000
|
480
|
260
|
420
|
37
|
15
|
5.5
|
|
W11S-28×3500
|
320
|
25
|
28
|
3500
|
500
|
260
|
420
|
37
|
15
|
5.5
|
|
W11S-26×4000
|
320
|
22
|
26
|
4000
|
520
|
260
|
420
|
37
|
15
|
5.5
|
|
W11S-39×2500
|
380
|
35
|
39
|
2500
|
500
|
275
|
460
|
45
|
22
|
5.5
|
|
W11S-35×3000
|
380
|
32
|
35
|
3000
|
510
|
275
|
460
|
45
|
22
|
5.5
|
|
W11S-32×3500
|
380
|
28
|
32
|
3500
|
530
|
275
|
460
|
45
|
22
|
5.5
|
|
W11S-30×4000
|
380
|
25
|
30
|
4000
|
550
|
275
|
460
|
45
|
22
|
5.5
|
|
W11S-43×2500
|
430
|
40
|
43
|
2500
|
520
|
290
|
500
|
55
|
22
|
7.5
|
|
W11S-38×3000
|
430
|
35
|
38
|
3000
|
540
|
290
|
500
|
55
|
22
|
7.5
|
|
W11S-36×3500
|
430
|
30
|
36
|
3500
|
560
|
290
|
500
|
55
|
22
|
7.5
|
|
W11S-32×4000
|
430
|
28
|
32
|
4000
|
580
|
290
|
500
|
55
|
22
|
7.5
|
|
W11STNC-15×2000 --
W11STNC-32×4000 |
同 上
|
|||||||||
|
W11ST&BNC-15×2000 --
W11ST&BNC-32×4000 |
同 上
|
|||||||||
